About Our Bar Peelers

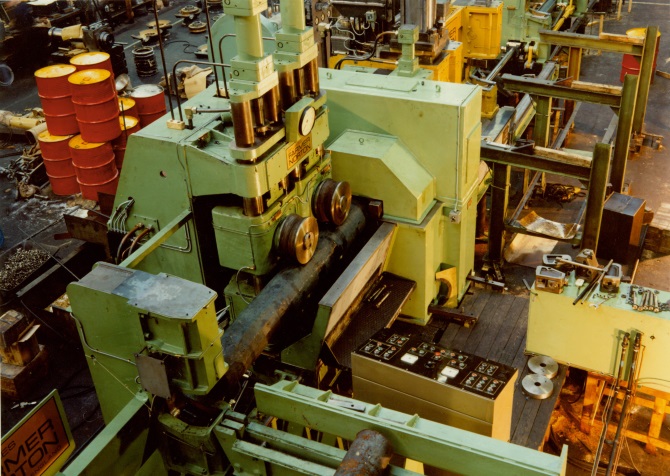

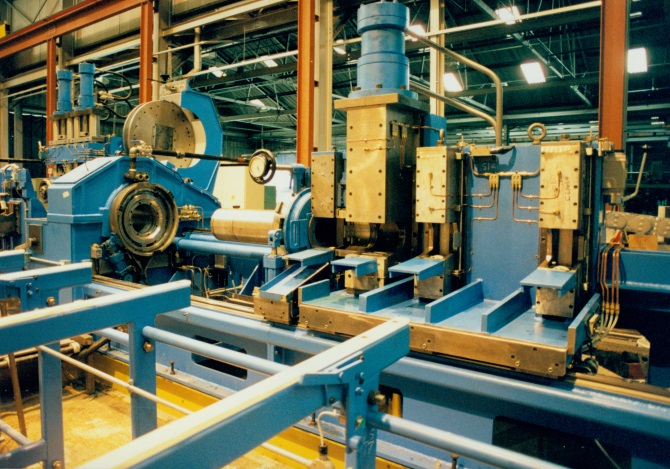

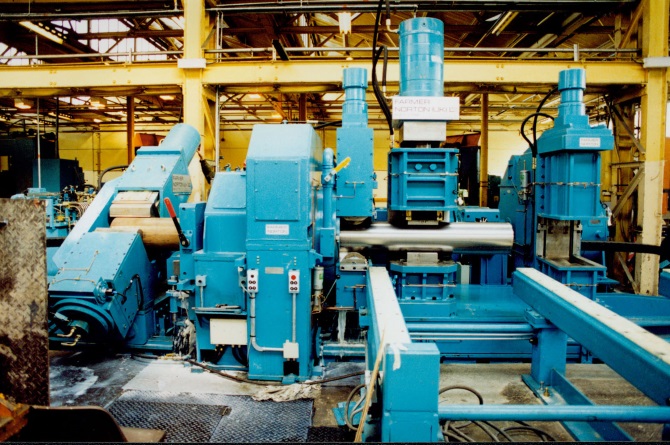

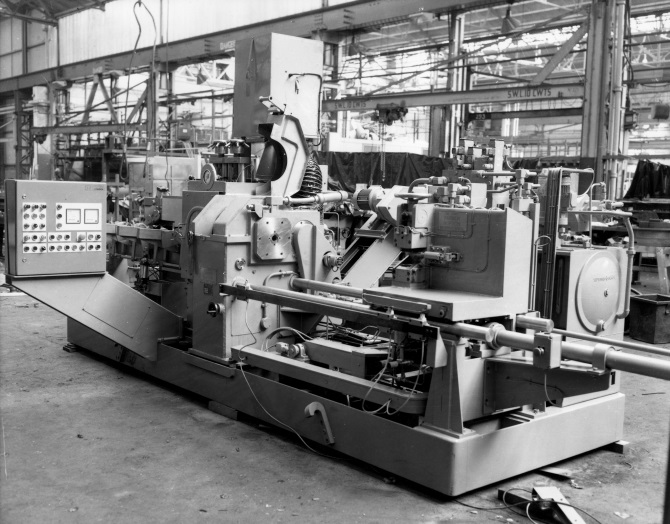

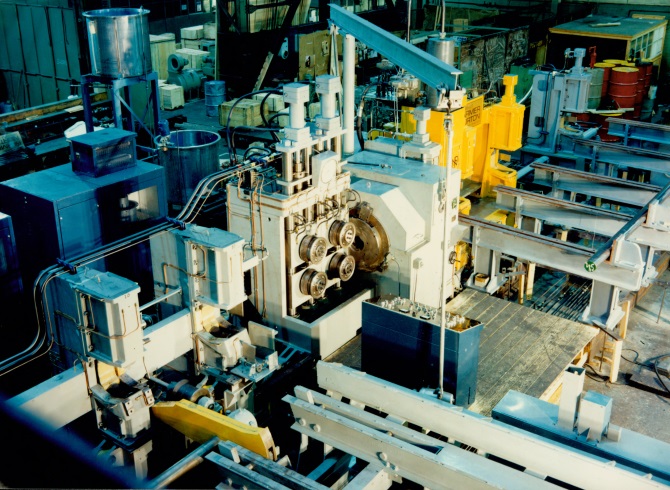

Sir James Farmer Norton have manufactured a range of Centreless Bar Peeling Machines to process various types of ferrous and non-ferrous materials. The machines cover finished bar diameters of 10 - 350mm, and would incorporate either a semi-finishing head which would house tool holders containing a series of tungsten carbide inserts, or a finishing head which would incorporate both tool holders and polishing rollers to give a superior surface finish.

ModelFinished Diameter Range
16HS6.5 - 16mm
20HS10 - 20mm
50HS10 - 50mm
60HS12 - 60mm
80HS15 - 80mm
100HS20 - 100mm
125HS25 - 125mm
150HS50 - 155mm
180HS50 - 180mm
200HS75 - 200mm
250HS80 - 250mm
300HS100 - 300mm
HS756.5 - 30mm
HS2006.5 - 51mm
HS30018 - 75mm
HS40025 - 102mm
HS60040 - 160mm
HS100090 - 260mm
MS10212.7 - 50mm
MS10412.7 - 104mm
MS10525 - 130mm
MS10650 - 162mm
MS10760 - 168mm
MS11076 - 254mm
MS112100 - 300mm
No. 1.512 - 40mm
No. 212 - 52mm
No. 312 - 80mm
No. 538 - 133mm
No. 764 - 184mm
No. 964 - 235mm
