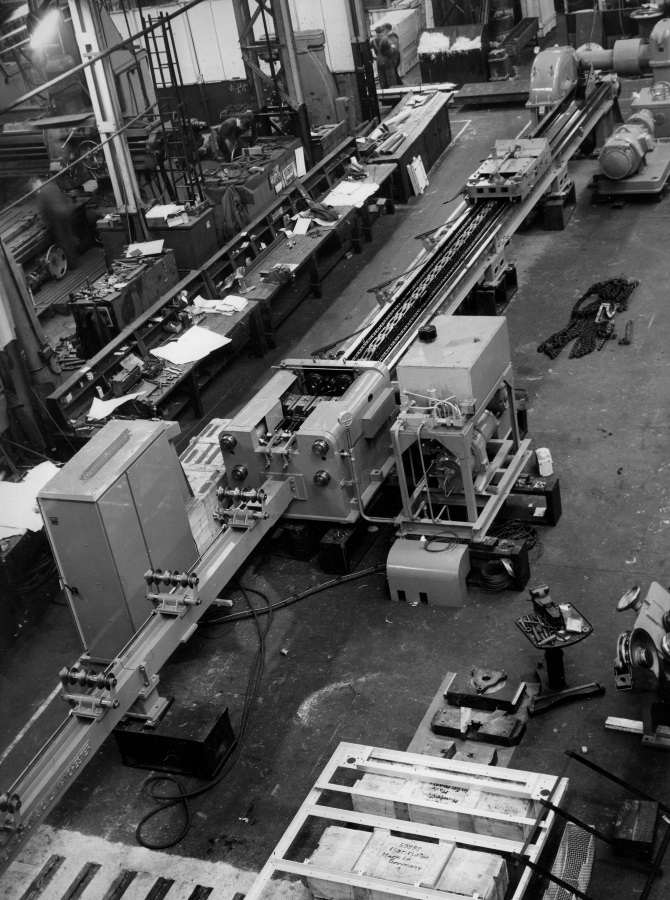

About Our Bar & Tube Drawbenches
We have produced a range of fully automatic bar and tube drawbenches in capacities of 1 - 150 ton, in single or multiple draw design, for the production of bright drawn steel and non-ferrous bars and sections, and ferrous and non-ferrous tubes.
Bar Drawbenches
| Draw Force (Ton) | Capacity | ||
|---|---|---|---|
| Single | Double | Triple | |
| 10 | 25mm | 16mm | ----- |
| 15 | 38mm | 25mm | 12.5mm |
| 20 | 50mm | 32mm | 17mm |
| 30 | 63mm | 38mm | 22mm |
| 45 | 76mm | 50mm | 27mm |
| 60 | 100mm | 57mm | 38mm |
| 90 | 150mm | 70mm | 50mm |
| Capacities based on material yield strength of 370 MPa | |||
| Drawbenches have been produced upto 160 tons | |||

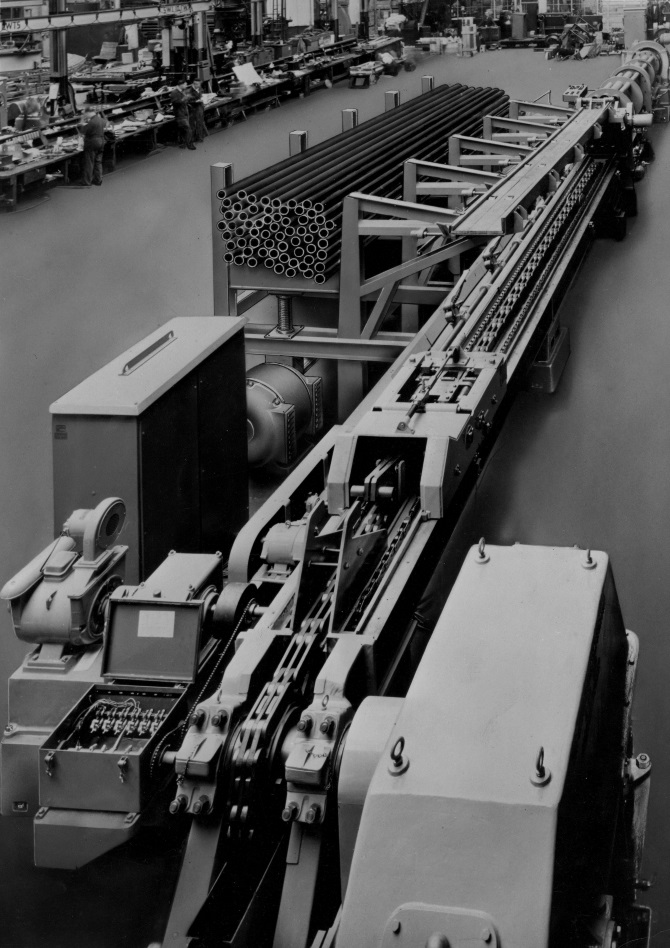

Tube Drawbenches
Various capacity Mechanical and Hydraulic tube drawbenches have been produced.
